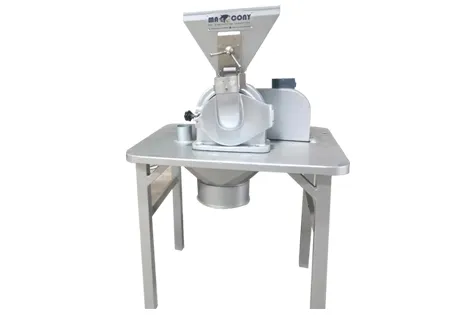

A turbo grinding mill is a high-speed impact mill used for fine and ultra-fine grinding of materials
It operates on the principle of centrifugal force, where materials are fed into the grinding chamber at high speed and subjected to intense impact forces generated by rotating impeller blades or pins
Components
– Made of stainless steel 304.
– Rotor speed: 7500 rpm.
– Grinding chamber: 220mm diameter.
– Fineness: 40mesh to 100mesh.
– Capacity: 20kg to 2000kg/h.
– Has hopper, fixed on a table with 4 leg.
– Classification System to ensure precise grinding performance
– Powered by drive motor, gearbox, and coupling arrangement to drive the rotor at high speeds
– turbo mills may include a control panel with variable speed drives and process monitoring sensor
– Has cooling air system to maintain the temperature of the grinding chamber.
– Has a cloth bag to collect the very fine volatile sugar.
– Adding Level control to control the amount of product.
Advantages :
- High Grinding Efficiency
- Versatility for different application
- Low Heat Generation during grinding
- Compact Design making them suitable for installations with limited space.
Turbo mill types
- Turbo grinding mill / impact turbo mill
- Ultra-fine turbo mill
- Powder pulverizer, turbo type
- Rotary blade plastic pulverizer
Food applications
- Stainless steel food grade turbo mill
- Sugar and starch turbo grinding mill
- Spices and herb turbo pulverizer
Plastic applications
- Turbo plastic pulverizer machine
- PVC / PE / PP turbo milling machine
- Roto-molding powder turbo mill
Fineness and construction
- Fine powder turbo mill, 80–120 mesh
- Ultra-fine pulverizer, 200–400 mesh
- Stainless steel 304 / 316L turbo pulverizer
- Wear-resistant alloy rotor
