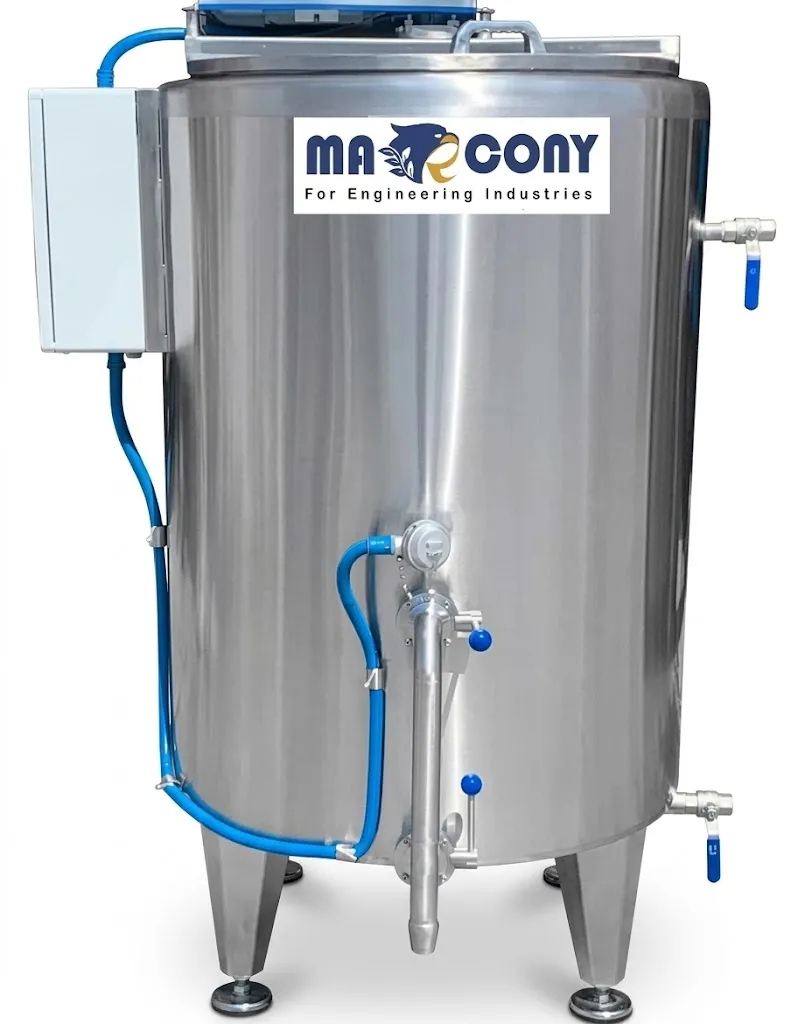

Storage tanks are used in chocolate manufacturing facilities, confectioneries, bakeries, and food processing plants where chocolate is a primary ingredient and for storing pharmaceutical ingredients, formulations, and sterile liquids in pharmaceutical manufacturing facilities
They maintain the temperature, viscosity, and quality of the chocolate, ensuring it remains in optimal condition for further processing or production Tanks come in various capacities ranging from small-scale tanks for artisan chocolatiers to large-scale tanks for industrial chocolate production
Details :
- Material: Chocolate storage tanks are typically made of food-grade stainless steel 304 or 316 to prevent contamination
- Insulation: Tanks may be insulated to maintain a consistent temperature and prevent heat loss
- Agitation System: Some tanks feature an agitation system, such as a stirrer or mixer, to prevent chocolate from settling and ensure uniform consistency Temperature Control
Chocolate storage tanks are equipped with temperature control systems, such as heating elements or cooling jackets, to maintain the chocolate at the desired temperature range
The design of the tank may include features like a sloped bottom for easy draining
A hinged lid or cover for access, and sight glasses or level indicators to monitor chocolate levels
Chocolate storage tanks are designed with hygiene in mind, featuring smooth surfaces, rounded corners, and sanitary fittings to facilitate cleaning and prevent bacterial growth
They may also have CIP (clean-in-place) systems or removable parts for thorough cleaning and sanitation
Safety features such as pressure relief valves, temperature alarms, and emergency shut-off systems to ensure safe operation and prevent accidents
Tank types
- Stainless steel liquid storage tank and buffer storage tank
- Double-jacketed storage tank
- Insulated stainless steel holding tank
- Dimple jacketed storage vessel
- Thermal oil / hot water jacketed storage tank
Agitation
- Storage tank with slow agitator
- Scraper mixer holding tank
- Paddle agitator liquid storage tank
Applications
- Double jacketed chocolate holding tank
- Sanitary milk cooling and storage tank
- Edible oil and shortening storage tank
- Syrup and liquid sugar buffer tank
Hygiene and instrumentation
- Stainless steel 304 / 316L food storage vessel
- CIP cleanable storage tank (with rotating spray ball)
- Sanitary mirror polish finish
- Load cells and level sensors
- Tri-clamp sanitary fittings
