It is typically used after the tempering and enrobing processes to set the chocolate or coating quickly and evenly.
Made entirely of 304 stainless steel up to 40mL and 1500mmW on request.
Details :
- Standard belt speed is variable between 0.50 – 10m\min on request.
- Cooling types: Cooling tunnel by air is designed to quickly and evenly cool food products such as chocolates, candies, confectionery, pastries and baked goods quickly and evenly after they have undergone chocolate coating processes.

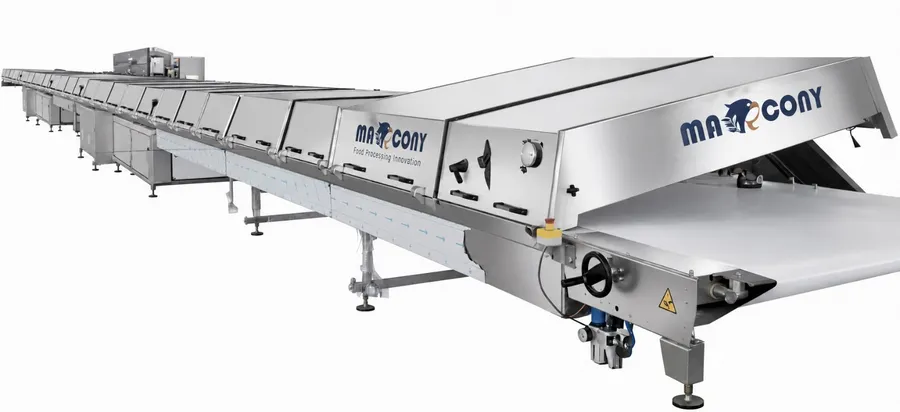

- A cooling tunnel machine usually consists of a long, insulated tunnel with a conveyor belt system running through it.
- The tunnel is divided into different sections, each equipped with cooling units such as blowers or cooling systems to maintain the required temperature.
- The blowers circulate chilled air within the cooling tunnel to properly lower the temperature in a short period of time, ensuring even cooling of food products.
- Cold air continuously is circulated from the middle of the cooling tunnel to both ends of the tunnel..
- Regulate humidity levels depending on the specific requirements of the products being cooled.
- Powered by motor and speed inverter.
- Equipped with a control panel that allows operators to monitor and adjust parameters such as temperature, conveyor speed and airflow.
Conveyor belt cooling tunnels
- Continuous chocolate cooling tunnel
- PU belt cooling tunnel for confectionery
- Modular multi-zone cooling tunnel
- Return-belt cooled chocolate tunnel
- Multi-tier / Z-type compact cooling tunnel
Slab cooling systems and steel belts
- Continuous steel belt slab cooler
- Continuous slab cooling table / water-cooled slab cooling table
- Heavy-duty confectionery slab cooling conveyor
- Double-belt continuous slab cooler
- Stainless steel chilled table for candy slabs
Chocolate and enrobing lines
- Enrobing line chocolate cooling tunnel
- Bottom-contact cooled chocolate tunnel
- High-gloss chocolate cooling tunnel
Bars, candy, caramel, halva and toffee
- Cereal bar continuous slab cooling line
- Protein bar chilled slab conveyor
- Caramel slab cooling drum / table
- Hard candy steel belt cooling tunnel
- Halva / toffee slab chilling conveyor
Construction
- Food grade AISI 304 stainless steel cooling tunnel line
- PU / fabric / stainless steel mesh cooling belt
- Hood-lift / openable canopy cooling tunnel
- Variable speed belt drive (VFD)
